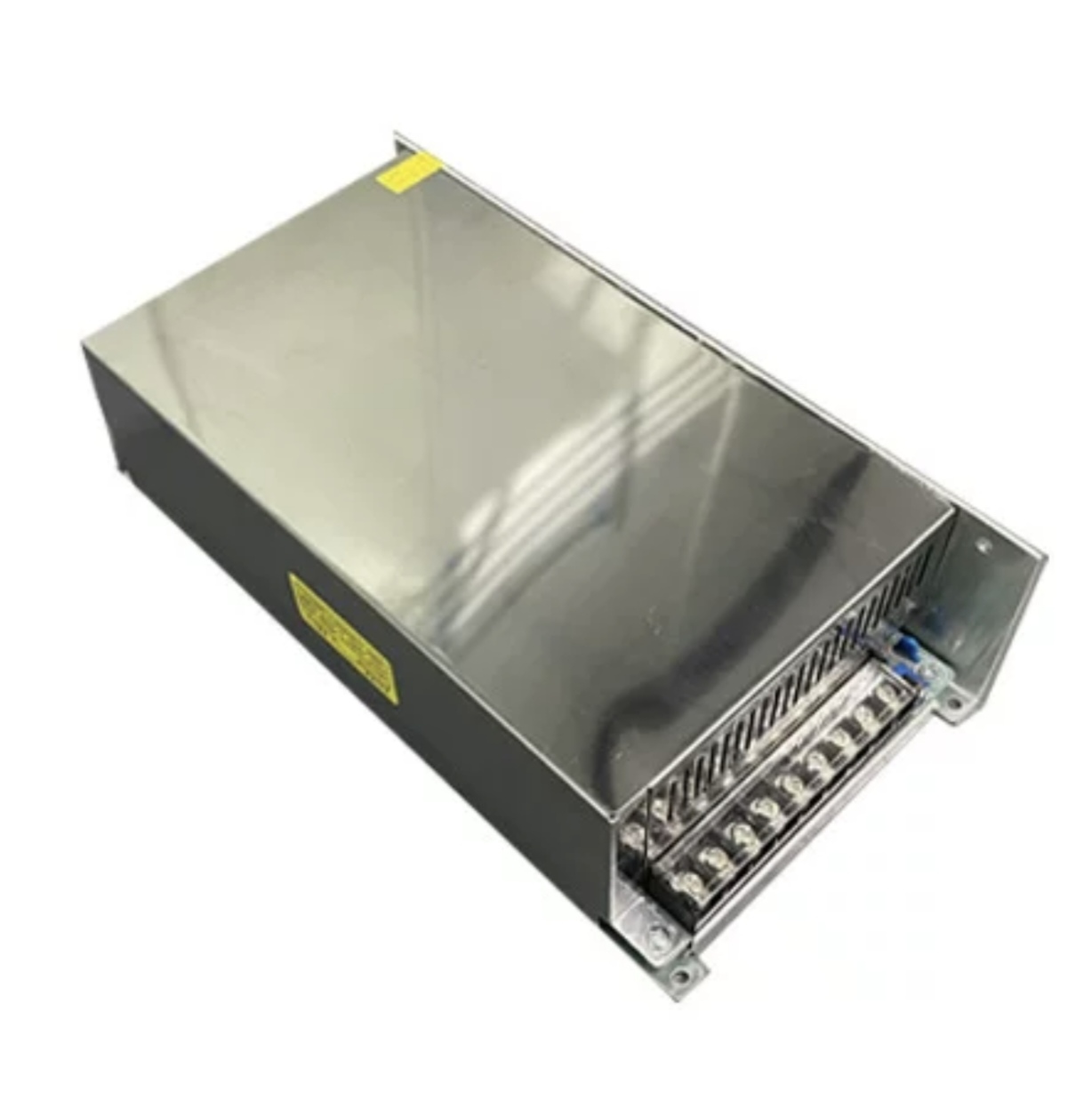

1200W High Power Switching Power Supply
Industrial AC/DC switching power supply designed for automation equipment, LED systems, machinery and high power applications.
Request A Quote
1200W
Rated Power
12-60V
Output Voltage
90%
High Efficiency
Industrial
Application
Product Overview
The 1200W high power switching power supply provides stable DC output for industrial automation equipment, machinery and electrical systems.
With multiple output voltage options and high efficiency design, this AC/DC power supply delivers reliable performance for demanding industrial applications.
The metal enclosure design provides excellent heat dissipation and mechanical protection, making it suitable for continuous operation in industrial environments.
Key Features
High Power Output
1200W rated power suitable for high load industrial equipment and automation systems.
Multiple Voltage Options
Available output versions including 12V, 24V, 36V, 48V and 60V.
Protection Functions
Built-in overload, short circuit and over voltage protection.
Industrial Reliability
Designed for stable operation in industrial automation and electrical applications.
Output Specifications
| Specification | Value |
|---|---|
| Rated Power | 1200W |
| Input Voltage | 100-240VAC |
| Output Voltage | 12V / 24V / 36V / 48V / 60V |
| Efficiency | Up to 90% |
| Cooling Method | Built-in Fan Cooling |
| Protection | Over Load / Short Circuit / Over Voltage |
| Working Temperature | -20℃ ~ +60℃ |
General Specifications
Input
Voltage Range: 100-240VAC
Frequency: 50/60Hz
AC Current: According to output voltage
Output
DC Output Voltage: 12V-60V
Voltage Adjustment Available
Stable DC Output
Environment
Working Temperature: -20℃ ~ +60℃
Storage Temperature: -40℃ ~ +85℃
Cooling: Fan Cooling
Safety & Mechanical
Metal Housing Design
Over Voltage / Over Load Protection
Industrial Installation
Built-in Protection Functions
Overload Protection
Automatically protects the power supply when output current exceeds the rated value.
Short Circuit Protection
Stops output during short circuit conditions and automatically recovers after fault removal.
Over Voltage Protection
Protects connected equipment from abnormal output voltage.
Thermal Protection
Temperature protection ensures safe and stable operation.
Mechanical Dimensions
Dimension Drawing
Mechanical drawing and installation dimensions available for technical evaluation.
Typical Applications
Industrial Automation
PLC systems, automation machines and factory control equipment.
LED Lighting
High power LED displays and industrial lighting systems.
Communication Equipment
Stable DC power supply for electronic and communication devices.
Industrial Machinery
Suitable for equipment requiring reliable high power output.
