INDUSTRIAL DIN RAIL SWITCHING POWER SUPPLY

EDR-150

125–156W DIN Rail Switching Power Supply

Slim industrial DIN rail AC/DC switching power supply with 24V DC output for industrial automation, control cabinets, PLC systems and other DIN rail equipment applications.

Request A Quote → Back to EDR / NDR Series

125–156W Rated Power

24V DC Output

90–264VAC AC Input Range

87% Typical Efficiency

40 × 125.2 × 113.5 mm Overall Dimensions

PRODUCT OVERVIEW

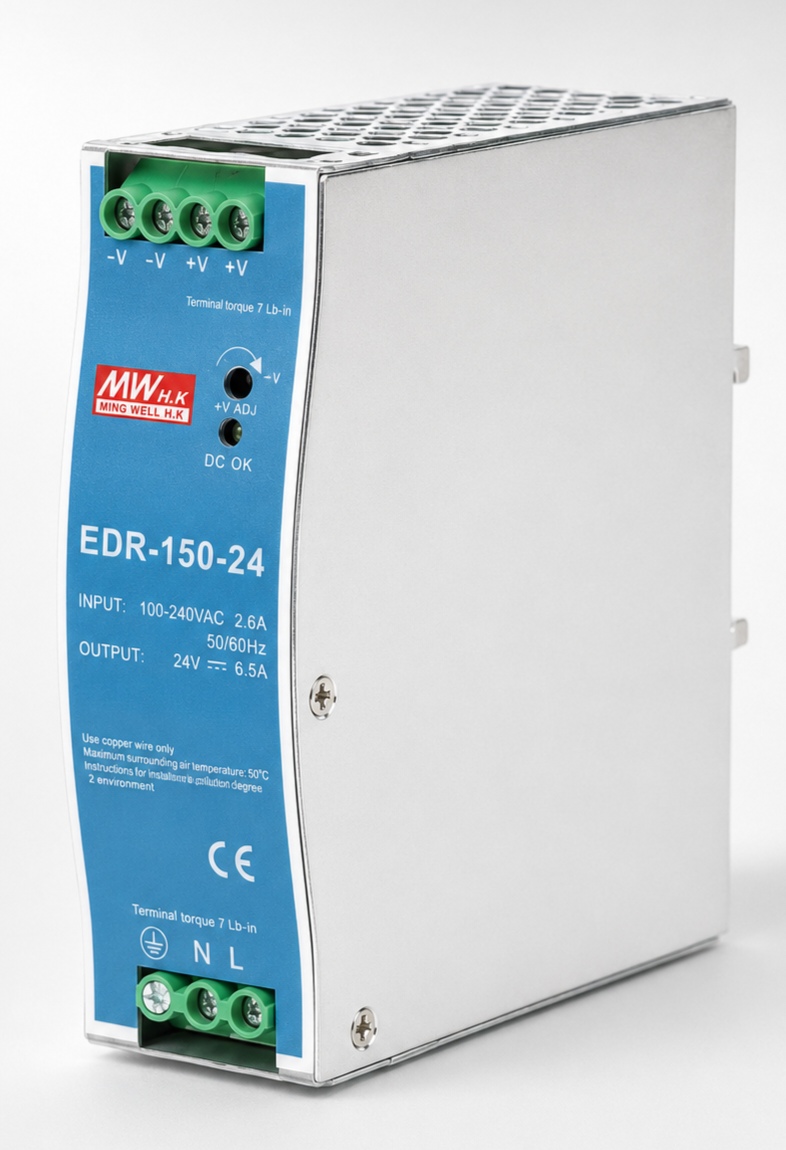

EDR-150 DIN Rail Power Supply

The EDR-150-24 provides a regulated 24V DC output. Rated output is 156W at 230VAC input and 125W at 115VAC input.

✓

Wide AC Input

90–264VAC or 127–370VDC input range.

⚡

24V DC Output

6.5A at 230VAC input and 5.2A at 115VAC input.

▣

Slim DIN Rail Design

40 mm wide enclosure for industrial DIN rail installations.

●

Industrial Protection

Built-in overload, overvoltage and over-temperature protection.

OUTPUT SPECIFICATIONS

EDR-150-24 Specifications

Output characteristics for the EDR-150-24 model.

Specification	EDR-150-24
DC Voltage	24V
Rated Current	6.5A @ 230VAC / 5.2A @ 115VAC
Current Range	0–6.5A @ 230VAC / 0–5.2A @ 115VAC
Rated Power	156W @ 230VAC / 125W @ 115VAC
Ripple & Noise	150mVp-p
Voltage Adjustment Range	24–28V
Voltage Accuracy	±1.0%
Line Regulation	±0.5%
Load Regulation	±1.0%
Efficiency	87%
Overvoltage Protection	29–33V

TECHNICAL DATA

General Specifications

Input

Voltage Range 90–264VAC / 127–370VDC

DC Input DC input operation available by connecting AC/L (+) and AC/N (-).

Frequency Range 47–63Hz

AC Current 2.6A / 115VAC, 1.7A / 230VAC

Inrush Current 20A / 115VAC, 35A / 230VAC, cold start

Leakage Current < 1mA / 240VAC

Timing

Setup / Rise Time 1500ms / 60ms at 230VAC; 3000ms / 60ms at 115VAC, at full load

Hold-up Time 16ms at 230VAC; 10ms at 115VAC, at full load

Environment

Working Temperature -20°C to +60°C

Working Humidity 20–95% RH, non-condensing

Storage Temperature / Humidity -40°C to +85°C, 10–95% RH, non-condensing

Temperature Coefficient ±0.03% / °C (0–50°C)

Vibration 10–500Hz, 2G, 10 min/cycle; X, Y and Z axes, 60 min each; installation according to IEC60068-2-6

Safety & Mechanical

Withstand Voltage I/P–O/P: 3KVAC; I/P–FG: 2KVAC; O/P–FG: 0.5KVAC

Isolation Resistance I/P–O/P, I/P–FG, O/P–FG: >100MΩ / 500VDC / 25°C / 70% RH

MTBF ≥ 472.5K hrs, MIL-HDBK-217F (25°C)

Dimensions 40 × 125.2 × 113.5 mm

Packaging 0.6kg; 20pcs / 13kg / 1.16CUFT

Safety Standards

Safety Norms UL508;
TUV EN60950-1

EMC

EMC Emission EN55022 (CISPR22) Class A;
EN61000-3-2 Class A (≤80% load);
EN61000-3-3

EMC Immunity EN61000-4-2,3,4,5,6,8,11;
EN55024;
EN61000-6-2 (EN50082-2);
Class A heavy industrial environment

PROTECTION

Built-in Protection Functions

Overload Protection

At 230VAC input, overload protection operates at approximately 105%–130% of rated output power. At 115VAC input, protection operates at approximately 105%–150%. Constant current limiting is used and recovery is automatic after the abnormal condition is removed.

Overvoltage Protection

Overvoltage protection operates at 29–33V and shuts down the output voltage. Recovery is achieved by restarting the power supply.

Over Temperature Protection

The output is shut down when over-temperature protection is activated. Recovery is achieved after restarting the power supply.

MECHANICAL DIMENSIONS

EDR-150 Dimension Drawing

Industrial DIN rail enclosure and mounting dimensions.

Overall Size: 40 × 125.2 × 113.5 mm

DIMENSIONS IN MILLIMETERS

APPLICATIONS

Typical Applications

Industrial Automation Automation equipment and production control systems.

Control Cabinets DIN rail power supply for industrial electrical panels.

PLC Systems Stable 24V DC power for programmable control equipment.

Industrial Equipment Equipment requiring regulated 24V DC power.
