S-250
Enclosed AC/DC switching power supply available in 5V, 12V, 15V, 24V, 27V and 48V output versions for industrial control, automation, electronic equipment and general power applications.
176–264VAC AC Input Range
S-250 Switching Power Supply
The S-250 Series provides six single-output DC versions: 5V, 12V, 15V, 24V, 27V and 48V.
The S-250 is an enclosed AC/DC switching power supply designed for reliable DC power delivery in industrial control equipment, automation systems, electronic equipment and general electrical applications.
The series features switch-selectable AC input, built-in DC fan forced-air cooling, short-circuit, overload and over-voltage protection, 100% full-load burn-in testing and a fixed 60KHz switching frequency.
Selectable AC Input
90–132VAC or 176–264VAC switch-selectable input, with 248–370VDC support.
Six Output Versions
Available in 5V, 12V, 15V, 24V, 27V and 48V DC output models.
Forced-Air Cooling
Built-in DC fan provides forced-air cooling for reliable operation at higher power levels.
Protection Functions
Built-in short-circuit, overload and over-voltage protection with automatic recovery.
S-250 Model Range
Official electrical output specifications for each available S-250 voltage version.
| Specification | S-250-5 | S-250-12 | S-250-15 | S-250-24 | S-250-27 | S-250-48 |
|---|---|---|---|---|---|---|
| DC Voltage | 5V | 12V | 15V | 24V | 27V | 48V |
| Rated Current | 40A | 18A | 15A | 10A | 9A | 5.2A |
| Current Range | 0–40A | 0–18A | 0–15A | 0–10A | 0–9A | 0–5.2A |
| Rated Power | 200W | 216W | 225W | 240W | 243W | 249.6W |
| Ripple & Noise | 80mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 200mVp-p |
| Voltage Adjustment Range | 4.75–5.5V | 10.8–13.2V | 13.5–16.5V | 21.6–26.4V | 24.3–29.7V | 43.2–52.8V |
| Voltage Tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Regulation | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 74% | 79% | 80% | 81.5% | 82% | 82% |
| Overvoltage Protection | 5.75–6.75V | 13.8–16.2V | 17.25–20.25V | 27.6–32.4V | 31.05–36.45V | 55.2–64.8V |
General Specifications
Input
248–370VDC
2.8A / 230VAC
Timing
Environment
10–95% RH
60 min each along X, Y and Z axes
Safety & Mechanical
I/P–FG: 1.5KVAC;
O/P–FG: 0.5KVAC
100MΩ / 500VDC / 25°C / 70% RH
MIL-HDBK-217F (25°C)
Safety Standards
Design Features
Built-in Protection Functions
Overload Protection
Overload protection operates at approximately 105%–135% of rated output power. Hiccup mode is used and normal operation automatically recovers after the fault condition is removed.
Overvoltage Protection
Overvoltage protection is provided for each S-250 output version. Protection operates in hiccup mode and automatically recovers after the abnormal condition is removed.
Short Circuit Protection
Built-in short-circuit protection helps protect the power supply during abnormal output conditions. Hiccup protection allows automatic recovery after the short-circuit condition is removed.

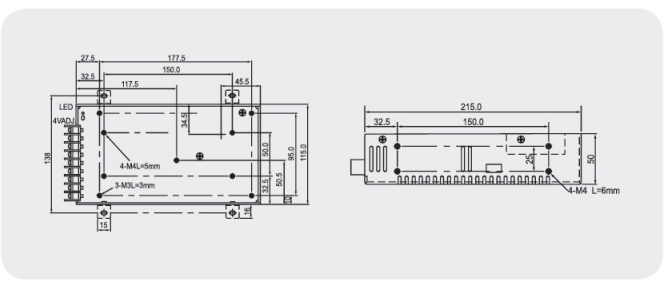

S-250 Dimension Drawing
Outline dimensions and mounting dimensions.
