S-400
Enclosed AC/DC switching power supply available in 9V, 12V, 13.5V, 24V and 48V output versions for industrial control, automation systems, electronic equipment and general power supply applications.
180–264VAC AC Input Range
S-400 Switching Power Supply
The S-400 Series provides five single-output DC versions: 9V, 12V, 13.5V, 24V and 48V.
The S-400 is an enclosed high-power AC/DC switching power supply designed for stable DC power delivery in industrial control equipment, automation systems, electronic equipment and general electrical applications.
The series features high-efficiency operation, built-in fan cooling, soft-start input current, built-in EMI filtering, overload and over-voltage protection, and 100% full-load burn-in testing.
High-Power AC Input
90–132VAC or 180–264VAC switch-selectable input, 47–63Hz, for industrial applications.
Five Output Versions
Available in 9V, 12V, 13.5V, 24V and 48V DC output versions.
Built-in Fan Cooling
Built-in cooling fan supports stable operation at high output power.
Protection Functions
Built-in overload, over-voltage and short-circuit protection for abnormal conditions.
S-400 Model Range
Electrical output specifications for the S-400 voltage versions.
| Specification | S-400-9 | S-400-12 | S-400-13.5 | S-400-24 | S-400-48 |
|---|---|---|---|---|---|
| DC Voltage | 9V | 12V | 13.5V | 24V | 48V |
| Rated Current | 43A | 33A | 29A | 17A | 8.3A |
| Current Range | 0–43A | 0–33A | 0–29A | 0–17A | 0–8.3A |
| Rated Power | 387W | 396W | 400W | 400W | 400W |
| Ripple & Noise | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p |
| Voltage Adjustment Range | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 78% | 83% | 85% | 85% | 86% |
| Overvoltage Protection | 13.8–16.2V | 15.5–18.2V | 18–21V | 27.6–32.4V | 57.6–67.2V |
General Specifications
Input
2.8A / 230V
Timing
Environment
10–95% RH
60 min each along X, Y and Z axes
Safety & Mechanical
I/P–FG: 1.5KVAC;
O/P–FG: 0.5KVAC
100MΩ / 500VDC
Safety Standards
Design Features
Built-in Protection Functions
Overload Protection
Protection operates at approximately 105%–135% of rated output power. Output power limiting protection is used and normal operation automatically recovers after the abnormal load condition is removed.
Overvoltage Protection
Built-in overvoltage protection is provided for each S-400 output version. The protection threshold depends on the selected output voltage model.
Short Circuit Protection
Built-in short-circuit protection helps protect the power supply during abnormal output conditions. Normal operation can resume after the fault condition is removed.

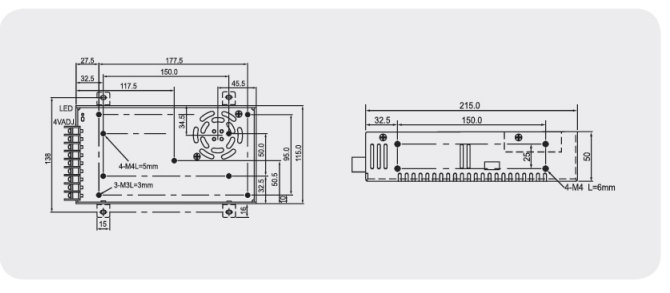

S-400 Dimension Drawing
Outline dimensions and mounting dimensions.
