S-60
Compact enclosed AC/DC switching power supply available in 5V, 12V, 15V and 24V output versions for industrial control equipment, automation applications, electronic equipment and general power supply use.

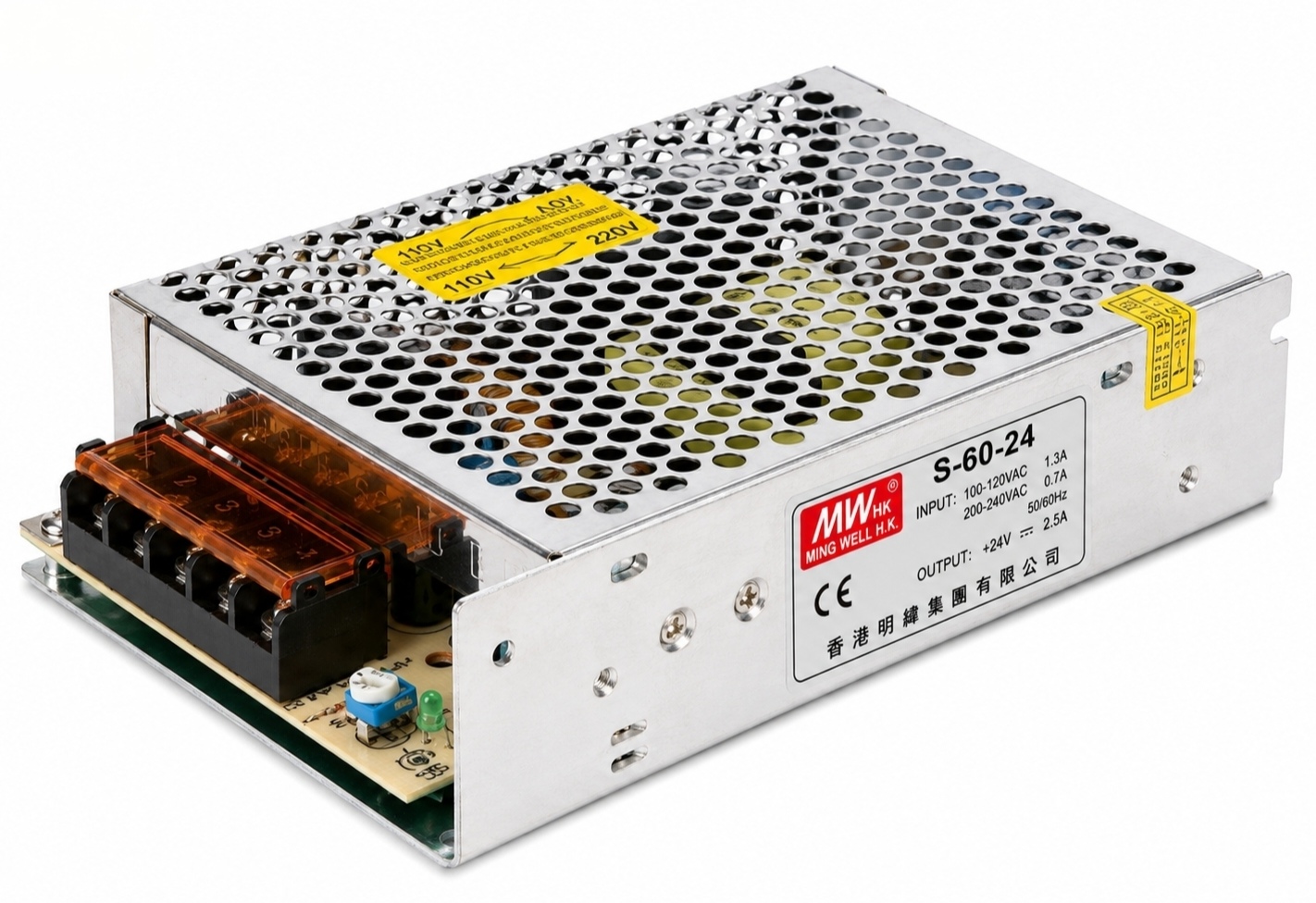

S-60 Switching Power Supply
The S-60 Series provides four single-output DC versions: 5V, 12V, 15V and 24V, with 60W rated output power.
The S-60 is an enclosed AC/DC switching power supply designed for stable DC power delivery in industrial control equipment, electronic systems and general power supply applications.
The series provides universal 85–264VAC input, free-air convection cooling, overload and overvoltage protection, 100% full-load burn-in testing and a fixed 77KHz switching frequency.
Universal AC Input
Wide 85–264VAC input range with 120–370VDC input support.
Four Output Versions
Available in 5V, 12V, 15V and 24V DC output models.
Compact Enclosed Design
159 × 97 × 38 mm enclosed design with free-air convection cooling.
Protection Functions
Built-in overload and overvoltage protection with automatic recovery.
S-60 Model Range
Electrical output specifications for each available voltage version.
| Specification | S-60-5 | S-60-12 | S-60-15 | S-60-24 |
|---|---|---|---|---|
| DC Voltage | 5V | 12V | 15V | 24V |
| Rated Current | 12A | 5A | 4A | 2.5A |
| Current Range | 0–12A | 0–5A | 0–4A | 0–2.5A |
| Rated Power | 60W | 60W | 60W | 60W |
| Ripple & Noise | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p |
| Voltage Adjustment Range | 4.75–5.5V | 10.8–13.2V | 13.5–16.5V | 21.6–26.4V |
| Voltage Tolerance | ±2% | ±1% | ±1% | ±1% |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Regulation | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 73% | 76% | 77% | 79% |
| Overvoltage Protection | 5.75–6.75V | 13.8–16.2V | 17.25–20.25V | 27.6–32.4V |
General Specifications
Input
120–370VDC
1A / 230VAC
40A / 230VAC, cold start
Timing
800ms / 50ms at 115VAC,
at full load
12ms typ. at 115VAC,
at full load
Environment
(refer to output load derating curve)
10–95% RH
60 min each along X, Y and Z axes
Safety & Mechanical
I/P–FG: 2KVAC;
O/P–FG: 0.5KVAC
100MΩ / 500VDC / 25°C / 70%RH
MIL-HDBK-217F (25°C)
24pcs / 13.1kg / 0.7CUFT
Safety Standards
UL60950-1;
TUV EN60950-1
Design Features
Built-in Protection Functions
Overload Protection
Protection operates at approximately 105%–150% of rated output power. Hiccup mode protection is used, and the power supply automatically recovers after the fault condition is removed.
Overvoltage Protection
Overvoltage protection levels are 5.75–6.75V for S-60-5, 13.8–16.2V for S-60-12, 17.25–20.25V for S-60-15 and 27.6–32.4V for S-60-24.
Short Circuit Protection
Short-circuit conditions are handled by the built-in hiccup protection function. Normal operation automatically resumes after the fault condition is removed.

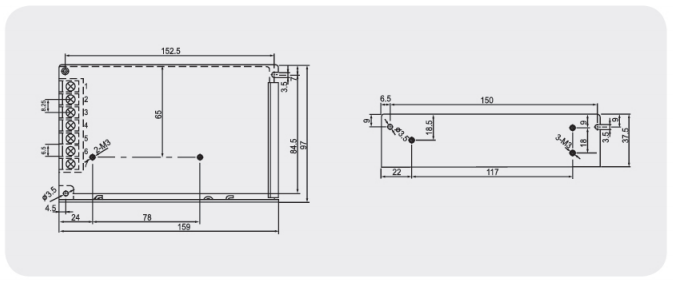

S-60 Dimension Drawing
Outline dimensions and mounting dimensions.
